MODEL
|
SIZE |
VOLTAGE（V） |
CURRENT（A） |
SPEED（RPM） |
AIR FLOW（CFM） |
PRESSURE（mmH2O) |
NOISE(dBA) |
WEIGHT(g) |

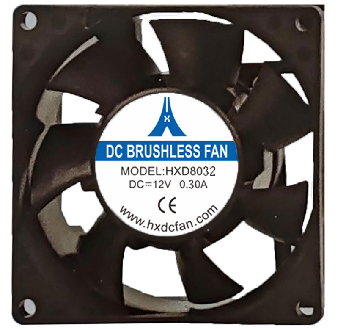

| HXD8032 |
80X80X32 |
12 |
1.50 |
8000 |
92.6 |
29.5 |
61 |
150 |
| 1.20 |
7000 |
81.0 |
23.0 |
54 |
| 1.00 |
6000 |
70.0 |
16.8 |
51 |
| 24 |
1.20 |
8000 |
92.6 |
29.5 |
61 |
| 0.60 |
7000 |
81.0 |
23.0 |
54 |
| 0.40 |
6000 |
70.0 |
16.8 |
51 |
| 48 |
0.40 |
8000 |
92.6 |
29.5 |
61 |
| 0.30 |
7000 |
81.0 |
23.0 |
54 |
| 0.25 |
6000 |
70.0 |
16.8 |
51 |
Expected Life:
Ball Bearing 70,000hrs (40°C)
Sleeve Bearing 30,000hrs (40°C)
Temperature Range:
Operating temperature -10'C-70°C (Non-condensing)
Storage temperature -40°C-75°C(Non-condensing)
Safety Standards:RoHS, CE,FCC
Bearing type：
1.Sleeve bearing(lower price):The sleeve was stalbe performance and easy installation Lifetime: 30,000h
2.Ball bearing(high price):it is charactered with high quality,low noise level and easy installation. Lifetime: 50,000h
Wire：
1.Auto-restart function
2.Stopage Alarm function(RD function with 3 lead wires)
3.Speed detection function( FG function with 3 lead wires)
4.Temperature control speed function(PWM function with 4 lead wires)
5. RD, FG, PWM(5 lead wires)
